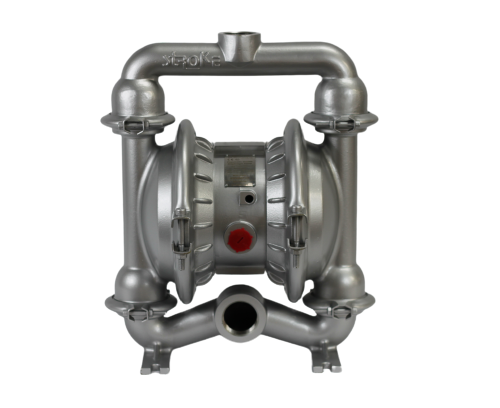

Teryair 1-1/2" 316 Stainless Steel AODD, MaxFlo Valve - 61 Gpm (0-273 Lpm)

Brand :

Write a Review
$2,189.00
SKU:
SDP40SSTCR
Weight:
57.00 LBS
Max Discharge:
61 Gpm
Material:
Stainless Steel
Air Distribution System:
SDP MaxFlo, MOC aluminum, acetal and CFT seals
Air Inlet:
1/2" NPT
Teryair 1-1/2" 316 Stainless Steel AODD, MaxFlo Valve - 61 Gpm (0-273 Lpm)
View Details

For fluids such asaromatic or chlorinated hydrocarbons, acids, caustics, ketone and acetates.



Pneumatic Double Diaphragm Pump Model SDP 40 SSX

MAX DISCHARGE - 61 Gpm (0-273 Lpm)

SIZE, MATERIAL - 1-1/2”, Stainless Steel 316L

WEIGHT - 63 Lbs

1-1/2 Inch AODD Stainless Steel 316

Stainless Steel pumps are used in applications which demand high pumping performance, combinations of hot and corrosive fluids, both acidic and alkali. They are the ultimate choice for durable long-life performance. These pumps are typically combined with highly capable and corrosion resistant diaphragms, mainly PTFE and often Viton® and SantopreneTM. With these elastomers pumping benzyl diacetone, phosphoric acid, ferric sulfate, isopropyl chloride, transformer oils and similar are ideal. Great for pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, acids, caustic, ketone and acetates.

Approvals and Certifications

All Teryair© pumps are CE marked and manufactured under an ISO 9001:2015 Quality system - SGS.

Versatility

  • This pump handles viscous fluids, slurries, solid laden fluids, shear sensitive fluids very well.
  • No priming needed.
  • No foaming of fluid pumped.
  • No stall damages
  • Portable and submergible.



Air Valve Type

  • SDP – MaxFlo

Pump Size

  • 40 – 1-1/2”

Material of Construction

  • SS – Stainless Steel 316L

Material of Diaphragm

  • T - PTFE

Bolted or Clamped

  • B – Bolted

Threading on Inlet and Outlet

  • R – NPT

Performance Graphs SDP 40 SST

  • *Disclaimer: Actual pump performance may vary depending on number of bends, suction needed and friction in length of discharge piping.

SDP 40SS with PTFE fitments

Maximum Discharge 61 gallons/min (232 Liters/min)

Suction Head Dry 12 feet (3.6 meters)

Suction Head Wet 28 feet (8 meters)

Pump Weight 63 Ibs (28.5 Kgs)

Max Solid Passage 3/16” (4.8 mm)

Air Distribution System SDP MaxFlo, MOC aluminum, acetal and CFT seals

Balls /Seals PTFE

Air Inlet 1/2" NPT

Fluid inlet, Fluid Outlet 1-1/2” NPT, 1-1/4” NPT



Related Model Numbers:

P4/SSAPP/BNS/BN/BN, PD15A-ASS-AAA, NDP-40BSS, NPF40/SAPP/SFG/SN/SN/B/C, PD15S-YSS-STT

Related IMPA's:

IMPA 591618, IMPA 591703, IMPA 591721



Max Discharge:
61 Gpm
Material:
Stainless Steel
Air Distribution System:
SDP MaxFlo, MOC aluminum, acetal and CFT seals
Air Inlet:
1/2" NPT
5-Year Limited Warranty
